아나로그

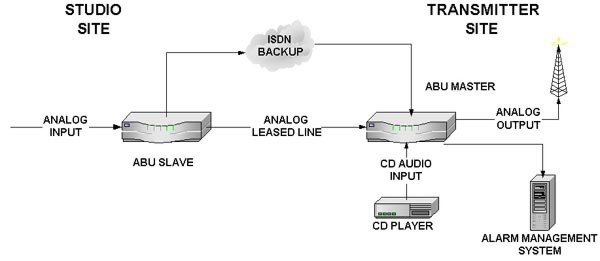

빽업 유니트 ABU는 스레이브에 오디오 소스를 연결하고
마스터측에 송신기를 연결합니다. 마스터는 연속적으로
스테레오 신호의 좌우측을 감시하여 어느 한쪽의 이상시에
정상 찬넬로 이상 찬넬을 대치시켜 줍니다. 만일 양측이
모두 이상이면 예비된 CDP 등을 작동시켜 줍니다.
|
One Integral ISDN Terminal Adapter
(64Kbps / 56Kbps)
12
International ISDN Standards - User Selectable from Front Panel
Real-time Applications - 2.8ms Coding
Delay
15.5KHz Mono or 7.5KHz
Mono Audio Over ISDN (128Kbps - 2B Channels)
> 82dB Signal-to-Noise Ratio
Remote Configuration via Management Ports
Keypad & Crystal Clear VFD
Display
85-260V AC Auto-ranging
Power Supply |
Coding
Standard
Coding Delay
Sample Rate (Fs)
Bandwidth
Format
S/N
Ratio
I/P Impedance
I/P Level
I/P Connectors
O/P Impedance
O/P
Level
O/P Connectors
*AUX I/P Impedance
*AUX I/P Level
*AUX I/P
Connectors
|
Sub Band ADPCM
2.8ms at 15.6KHz
16KHz to 32KHz
5Hz to 15.6KHz @Fs=32KHz
Mono (auto
monoised)
>80dB
>10K
+12dBu Max
XLR
Balanced
<100R
+12dBu Max
XLR Balanced
>10K
+12dBu
Max
XLR Balanced
|
Type
Speed
Signals
Connector |
V.24 - Fixed DCE /
DTE
9.6Kbps Async 8,n,1
TXD, RXD, GND
Dual 9 Way D-Type
Female |
Type
Connector
Contact
Closure: Aux Feed In Use
Contact Closure: Left Channel Good
Contact Closure: Left Channel Good
Contact Closure: Main Feed in
Use
Contact Closure:
ISDN Feed in Use
Contact
Closure: System in Auto
Override Signal: Force to ISDN
Override Signal: Force to Main
Override Signal: Force to Aux |
COM, NC, NO
25 Way D-Type
Female
|
Type
Connector
Contact Closure: ISDN Feed In Use
Contact Closure: Audio Good |
COM, NC, NO
25 Way D-Type
Female
|
Type
Connector
Contact Closure: Start Aux CD |
COM, NC, NO
9 Way D-Type
Female
|
Voltage
Power
Connection |
85-260 VAC 60/50Hz Auto
Ranging
20W
IEC Mains Plug |
Enclosure
Width
Depth
Height
Weight |
1U 19"
Rackmount
482mm
210mm
45mm
2.0Kg |
*ABU Master Only |

|
